CANopen Bus Control NEMA 23 Digital Driver CIA301 RS-485 Step 2DM556-RC 2DM556-RC Communication

CANopen Bus control digital nema 23 stepper driver CIA301 RS-485 Communication 2DM556-RC

Introduction

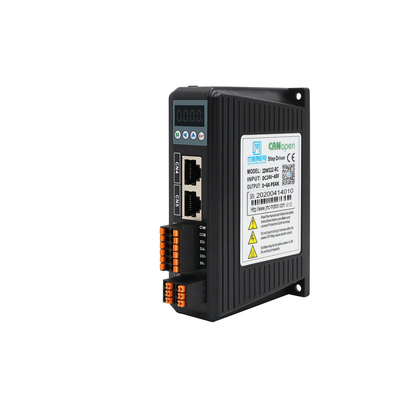

2DM556-RC is a new Bus control digital step motor drive which designed by the Shenzhen JUST MOTION CONTROL electromechanical Co., Ltd. Based on 2DM556,RS-485 and CANopen bus control has been added. It supports two control modes which are pulse and CANopen. In the pulse control mode, it supports pulse/direction and double pulse mode. In the CANopen bus control mode, it supports the communication protocol of CIA301and the position,speed and homing modes of the motion control CIA402.it supports up to 127 AXES, the high communication speed to 1Mbps, the farthest transport to 1KM and uses four wire bus to save the cost of wiring and reduce the complexity of the wiring structure and workload. By bus transmission parameters, don’t need to rely on the external pulse sequence, the reduction of pulse interference or complex deceleration process of work, improve the stability and the reliability of the system operation.

Features:

1. Completely contain the features of 2DM556
2. Support the bus control as RS-485 and CANopen
3. Support the communication protocol of CIA301 and up to 127 AXES
4. Support the position,speed and homing mode of CIA402
5. Support the CW and the CCW mode
6. Support the output of alarm
7. Four digital signal output:break,motion and fault
8. Seven digital signal input:X3~X9,pulse/direction input,5~24VDC,optically isolation

Technical Parameters:

Working environment:

Situation: try to avoid dust, oil mist and corrosive gas

Operating temperature: 0~+50 ℃

storage temperature: -10 ℃ ~+80 ℃

Humidity: below 80%RH
