Automation Equipment Samsr NEMA 17 Stepper Motor 4lead Drive 145W Bipolar Changing Power Supply 1.5A 42Ncm (60oz.in) for 3D Printer/CNC

1 Piece
MOQ
$69.88(1 - 49 Pieces) $65.88(50 - 199 Pieces) $60.88(200 - 499 Pieces) $56.88(>=500 Pieces)
Prix
Automation Equipment Samsr NEMA 17 Stepper Motor 4lead Drive 145W Bipolar Changing Power Supply 1.5A 42Ncm (60oz.in) for 3D Printer/CNC
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Warranty: 12 months
Model Number: SS1703A15A(N)+MD-2322+S-145-24
Phase: 2
Type: Hybrid
Current / Phase: DC 1.5A/Phase
Product name: Samsr 0.373Nm 3D Printer Stepper Motor
Application: Automation equipment
suppy power: 12-24VDC
Resistance: 1.8Ohms
Inductance: 3.4mH
Rotor Inertia: 57g.cm2
Lead: 4
Shaft Diameter: 5.0mm
Motor length: 41mm
Weight: 0.28g
Certification: ce, ISO, RoHS
Informations de base
Certification: ce, ISO, RoHS
Model Number: SS1703A15A(N)+MD-2322+S-145-24
Conditions de paiement et expédition
Packaging Details: Exported Box+Anti-drop bubble
Description de produit

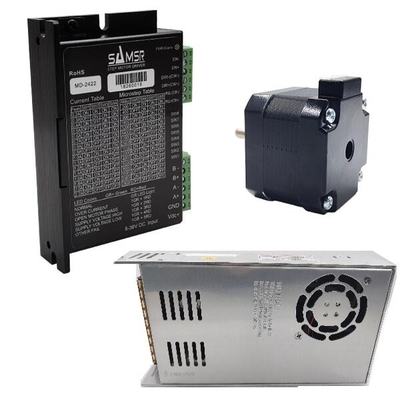

Samsr nema 17 Step motor bipolar 1.5A 42Ncm(60oz.in) 4lead + stepper motor drive +145W switching power supply for 3D Printer/CNCr

Product Detail

Feature:

Brand Samsr
Motor Model No SS1703A15A
Drive Model No MD-2322
Power supply Model No S-145-24
Step angle 1.8°
No of phases 2
Rated voltage 2.55V
Rated current 1.5A
Resistance 1.8ohm (AT 20°C)
Inductance 3.4mH
Holding torque: 0.42N.m(oz.in)
Insulation resistance: 100 MΩ
Dielectric strength: 500V A.C
Temperature rise: 80K (Max)
Rotor inertia: 57g.cm
Operation ambient temp Operation ambient temp:-20°C~+50°C
Operation ambient hum 15%~90%
Life 5000Hours
Motor Length 41mm
Motor Weight 0.28Kg
Drive Weight 0.21kg
Power Supply Weight 0.68kg

Numbering System

Product Description

Drive Dimensions(Unit:mm)

Motor Dimensions(Unit:mm)

Option-NEMA 17 Motors

Model Rated voltage Rated current Resistance Holding Torque Motor length Weight Encoder Brake single shaft dual shaft IP grade
SS1701A10BB18 2.6V 0.95A 2.7ohm 0.8N.m 65.0mm 0.33kg No No No Yes IP40
SS1702A10A 4.8V 0.85A 5.75ohm 0.257N.m 34.0mm 0.23kg No No Yes No IP40
SS1703A10A 3.2V 1.0A 3.2ohm 0.4N.m 49.0mm 0.36kg No No Yes No IP40
SS1703A12A 5.76V 1.2A 4.8ohm 0.4N.m 39.8mm 0.28kg No No Yes No IP40
SS1703A15A 2.55V 1.5A 1.8ohm 0.42N.m 41.0mm 0.28kg No No Yes No IP40
SS1704A08A 5.0V 1.0A 8.2ohm 0.567N.m 17.5mm 0.36kg No No Yes No IP40
SS1704A10A 3.2V 1A 3.2ohm 0.4N.m 47.0mm 0.36kg No No Yes No IP40
SS1704A12A-01 3.36V 1.2A 2.8ohm 0.48N.m 47.5mm 0.43kg No No Yes No IP40
SS1704A13E 3.9V 1.3A 3.0ohm 0.35N.m 45.5mm 0.325kg No No Yes No IP65
SS1704A20A 3.6V 2.0A 1.8ohm 0.53N.m 49.5mm 0.60kg No No Yes No IP40
SS1704A20B-02 3.4V 2.0A 1.7ohm 0.54N.m 47.7mm 0.36kg No No No Yes IP40
SS1704A20D 3.6V 2.0A 1.81ohm 0.54N.m 72.5mm 0.52kg No Yes Yes No IP40
SS1704A20F1000 3.6V 2.0A 1.35ohm 0.48N.m 67.6mm 0.36kg 1000 line No Yes No IP40
SS1705A23F1000 3.6V 2.0A 1.3ohm 0.76N.m 65.0mm 0.53kg 1000 line No Yes No IP40
SS1705A21A 3.6V 2.0V 1.8ohm 0.72N.m 60.1mm 0.50kg No No Yes No IP40

Configuration and Option Other Driver:MD-2522

Related Products:Nema 8/11/14/23/34/42/54 2 phase stepper motor

---Click following picture to check the corresponding product information

Nema 14(35mm) Nema 23(57mm) Nema 24(60mm)

Nema 34(86mm)

Packaging & Shipping

Company Informtion

FAQ

1. How about the delivery?
- Sample: 1-3 days.
- Bulk order: 5-15 days.

2. What is your after-sales services?
1. Free maintenance within 12 months guarantee, lifetime consultant.
2. Professional solutions in installation and maintence.

3. Why choose us?
1. Accept customize & 24/7 after-sale services.
2. From mold customization to material processing and welding, from fine components to finished assembly,strict aging, finished product inspection.

4. Do you get the relevant certification?
All products are made according to ISO9001, CE &RoHS requirements.
